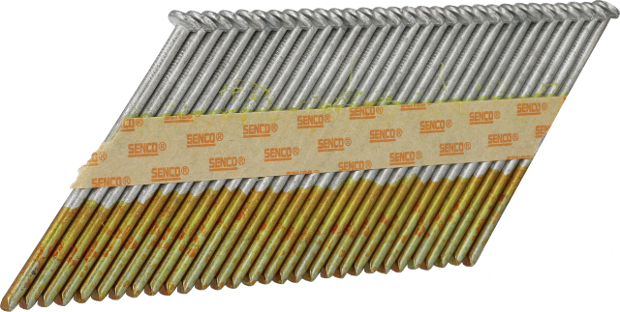

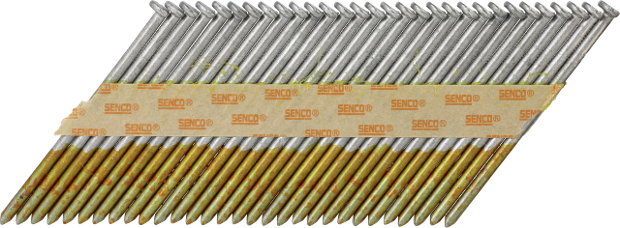

HC stripspijker glad 3,1x90mm

Tik op afbeelding om te zoomen

Omschrijving

3,1mm gladde stripspijker, HDG, Sencoted

Meer lezen Minder lezen

Toepassingen

Constructie, Bekleding, Ondervloeren, Vlonders, Spanten, Palleten en kratten

Meer lezen Minder lezen

Norm

Geharmoniseerde norm EN 14592:2008+A1:2012

Informatie aanvragen

Specificaties

Identificatie

Artikelnummer: HC59ESBKR
GTIN: 8715274027623

Technische specificaties

Rolhoek: 34 °
Verbindingstype: Papier gebonden
Draad materiaal: Carbon met standaard treksterkte

Specificaties bevestigingsmiddelen

Afwerking: Hot-Dipped galvanised 3
Coating: Sencoted
Toepassingsomgeving: Buiten
Nageltype: D-kop stripspijker
Nagelkop type: Geknipte kop
Spijkerschacht type: Gladde schacht
Punt type: Scherpe beitel
Punthoek: 40 °
Spijker diameter: 3.1 mm
Aantal bevestigingsmiddelen per strip/rol: 29 - 31
Spijker lengte: 90.0 mm

CE specificiaties

Karakteristieke kop doortrek parameter: 30.1 N/mm²
CE bevestiging type: Rond dwars-doorsnede glad schacht spijker
DOP No: HC59ESBKR
Corrossieklasse in micron: 55
Service klasse: 3
Coating type: Coating type 3
Coating lengte: 60.0 mm
Kop oppervlakte: 30.0 mm
Karakteristieke buigmoment: 2570.0 Nmm
Karakteristieke breuksterkte: 633.0 N/mm²
Geharmoniseerde norm: EN 14592:2008+A1:2012
Karakteristieke uittrek parameter: 3.1 N/mm²

Niet-technische specificaties

Verpakkingshoeveelheid: 2000

Logistieke kenmerken

Nettogewicht: 11.35 kg

Verwant gereedschap

Downloads

HC59ESBKR_nl_CommercialProductSheet_1.6_1752227567336 PDF 1 Mb
DOP VS-CPR-201305-S028 PDF 123 Kb
DOP VS-CPR-201305-S028 PDF 123 Kb
HC59ESBKR_nl_DeclarationOfPerformanceDoP_1.0eu_1729043936641 PDF 62 Kb
