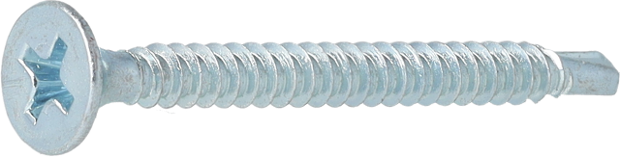

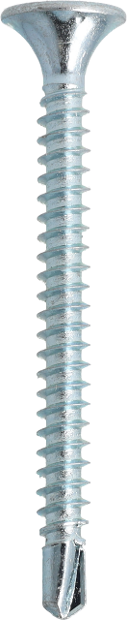

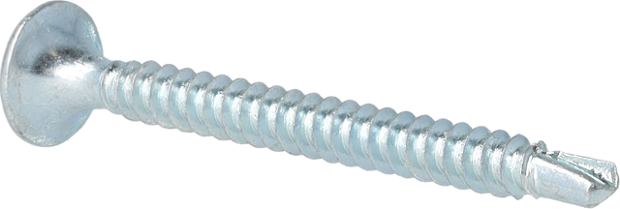

Vis plaque de plâtre sur acier épais PH2 zinc clair 3,5x40mm

cliquer sur l’image pour zoomer

Description

Vis plaque de plâtre sur acier épais 3,5 mm, zinc clair

Afficher la suite Masquer la suite

Norme harmonisée EN 14566:2008+A1:2009

Demander des informations

Spécifications

Identification

Numéro d'article: 35Q40MCM
GTIN: 8715274296746

Spécifications techniques

Type de liaison: Liaison plastique
Matériau du fil: Acier au carbone résistance standard
Rotations par minute: 2300, 2500, 3000, 3300 RPM

Spécifications consommables

Finition: Zinc clair
Environnement de l’application: Intérieur
Type de pointe: Auto-perçage
Angle de pointe: 110 °
Type de tête de vis: Tête évasée
Évidement: Philips 2
Type de filetage de la vis: Fin
Longueur de la vis: 40.0
Diamètre de la vis: 3.5 mm

Spécifications CE

DOP No: 35Q40MCM
Classe de service: 1
Diamètre intérieur fileté: 2.65 mm
Longueur de la partie filetée: 33.2 mm
Norme harmonisée: EN 14566:2008+A1:2009

Spécifications non techniques

Quantité d’emballage: 1000

Outils connexes

Téléchargements

35Q40MCM_fr_CommercialProductSheet_1.1_1750134965280 PDF 1 Mb
DOP DSP980005 PDF 403 Kb
DOP DSP980005 PDF 403 Kb
35Q40MCM_fr_DeclarationOfPerformanceDoP_1.0eu_1750134884629 PDF 59 Kb
