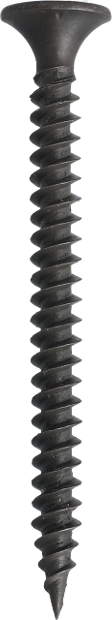

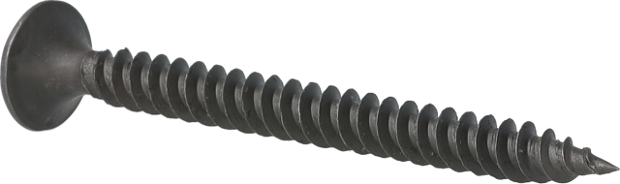

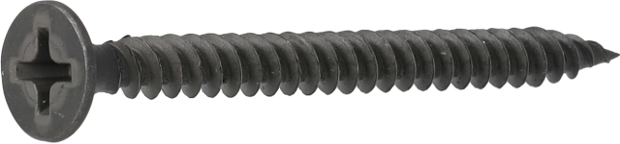

Vis plaque de plâtre sur acier léger PH2 phosphaté 3,9x25mm

cliquer sur l’image pour zoomer

Description

Vis plaque de plâtre sur acier léger, phosphatée

Afficher la suite Masquer la suite

Norme harmonisée EN 14566:2008+A1:2009

Demander des informations

Spécifications

Identification

Numéro d'article: 39B25MPN
GTIN: 8715274251721

Spécifications techniques

Type de liaison: Liaison plastique
Matériau du fil: Acier au carbone résistance standard
Rotations par minute: 3300, 4000, 5000 RPM

Spécifications consommables

Finition: Phosphaté (gris)
Environnement de l’application: Intérieur
Type de pointe: Acéré
Angle de pointe: 23 °
Type de tête de vis: Tête évasée
Évidement: Philips 2
Type de filetage de la vis: Fin
Quantité de consommables sur bande/rouleau: 50 - 50
Longueur de la vis: 25.0
Diamètre de la vis: 3.9 mm

Spécifications CE

DOP No: 39B25MPN
Classe de service: 1
Diamètre intérieur fileté: 2.8 mm
Longueur de la partie filetée: 20.5 mm
Norme harmonisée: EN 14566:2008+A1:2009

Spécifications non techniques

Quantité d’emballage: 4000

Outils connexes

Téléchargements

39B25MPN_fr_CommercialProductSheet_1.4_1750121636631 PDF 1 Mb
DOP DSP980005 PDF 403 Kb
DOP DSP980005 PDF 403 Kb
39B25MPN_fr_DeclarationOfPerformanceDoP_1.1eu_1750121569403 PDF 59 Kb
