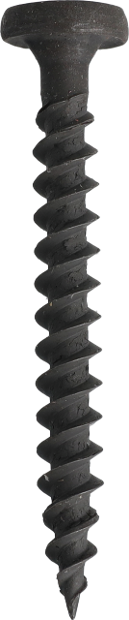

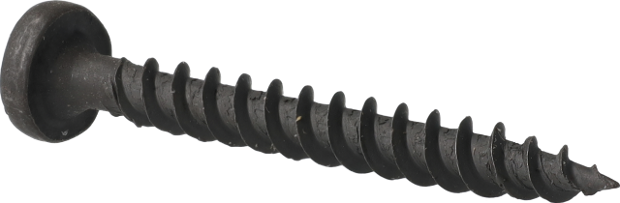

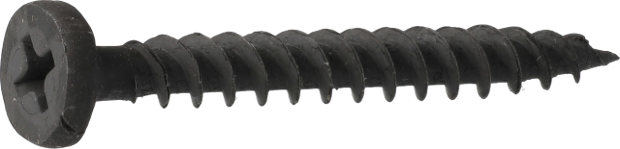

Vis plaque fibre dure sur acier léger SD25 phosphaté 4,2x38mm

cliquer sur l’image pour zoomer

Description

Vis plaque fibre dure sur acier léger, phosphatée

Afficher la suite Masquer la suite

Norme harmonisée EN 14566:2008+A1:2009

Demander des informations

Spécifications

Identification

Numéro d'article: 42UM38MP
GTIN: 8718035003805

Spécifications techniques

Type de liaison: Liaison plastique
Matériau du fil: Acier au carbone résistance standard
Rotations par minute: 3300, 4000, 5000 RPM

Spécifications consommables

Finition: Phosphaté (gris)
Environnement de l’application: Intérieur
Type de pointe: Acéré
Angle de pointe: 23 °
Évidement: Senco drive 25
Type de filetage de la vis: Fin
Quantité de consommables sur bande/rouleau: 50 - 50
Longueur de la vis: 38.0
Diamètre de la vis: 4.2 mm

Spécifications CE

DOP No: 42UM38MP
Classe de service: 1
Diamètre intérieur fileté: 2.95 mm
Longueur de la partie filetée: 33.0 mm
Norme harmonisée: EN 14566:2008+A1:2009

Spécifications non techniques

Quantité d’emballage: 1000

Spécifications logistiques

Poids net: 2.37 kg

Outils connexes

Téléchargements

42UM38MP_fr_CommercialProductSheet_1.3_1752293579386 PDF 1 Mb
DOP DSP980005 PDF 403 Kb
DOP DSP980005 PDF 403 Kb
42UM38MP_fr_DeclarationOfPerformanceDoP_1.0eu_1750147626707 PDF 59 Kb
