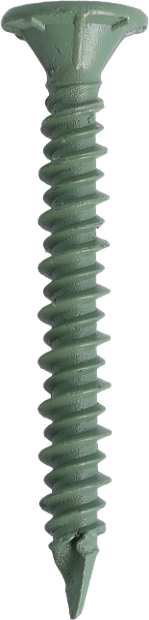

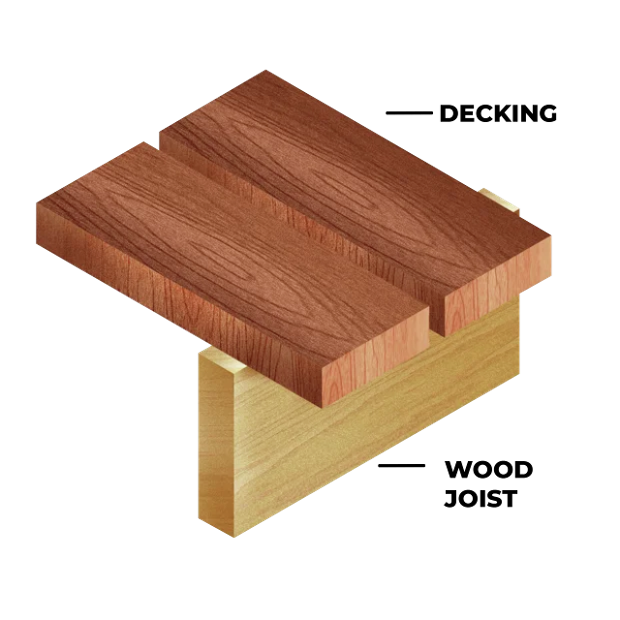

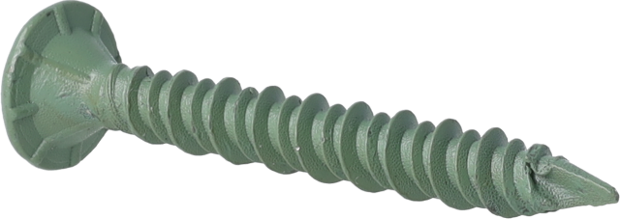

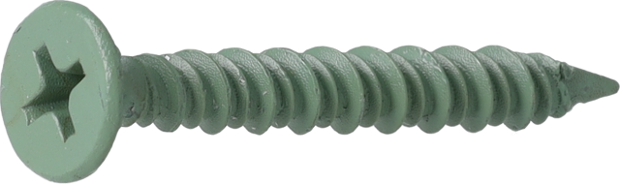

Vis plancher/terrasse bois sur bois, Weatherex II

cliquer sur l’image pour zoomer

Description

Vis plancher/terrasse bois sur bois, Weatherex II

Afficher la suite Masquer la suite

Harmonized standard EN 14566:2008+A1:2009

Demander des informations

Spécifications

Identification

Article number: 45US38MW
GTIN: 8718035002235

Spécifications techniques

Collation type: Plastic collated
Wire material: Carbon steel standard tensile
Rotations per minute: 2500, 3000, 3300 RPM

Spécifications consommables

Finish: Weatherex II
Application environment: Outdoor
Point type: Spoon point
Pointangle: 30 °
Screw head type: Small with 4 nibs
Screw recess: Philips 2
Screw thread type: Hi-Lo
Amount fasteners on strip/coil: 50 - 50
Screw length: 38.0 mm
Screw diameter: 4.5 mm

Spécifications CE

DOP No: 45US38MW
Material notification on CE label: Non-alloy steel
Service class: 3
Inner threaded diameter: 3.3 mm
Threaded/profiled length: 30.0 mm
Harmonized standard: EN 14566:2008+A1:2009

Spécifications non techniques

Package quantity: 1000

Outils connexes

Téléchargements

45US38MW_fr_CommercialProductSheet_1.1_1750168944661 PDF 1 Mb
45US38MW_fr_DeclarationOfPerformanceDoP_1.0eu_1750168865365 PDF 59 Kb
